Home > Products > Diamond Tool parts > PCD/TSP > TSP diamond insert for oil industrial drill bit, TSP inserts TSP diamond insert for oil industrial drill bit, TSP inserts Awaiting for your inquiry,we will response you at the first time!

TSP diamond insert for oil industrial drill bit, TSP inserts TSP diamond insert for oil industrial drill bit, TSP inserts Awaiting for your inquiry,we will response you at the first time!

Product Description

TSP diamond insert for oil industrial drill bit, TSP inserts   Note:Wholesale TSP insert,If u need,Pls contact Joey wei directly or email to us.We wish to be your stable supplier and provide the better service,price,quality for u.       PCD Cutting Tool blanks, PCD blanks PCD cutting tools   The Description of PCD Cutting Tool Blanks:   More Super Hard cutting tool blanks in the size of 5μm,10μm and 25μm can be used in super-fine processing and fine. They are applicable to the processing of non-metal matal as wood, ceramics,intensified planks and ono-farrous material as copper and aluminum. We can supply all kinds of products with diameter lsee 45mm.       The Sizes of PCD Cutting Tool Blanks:

Shape

Angle(A)

Diameter(D)

Thickness(T)









360

11

1.6/2.0/3.2

360

13.2

1.6/2.0/3.2

360

16.2

1.6/2.0/3.2

360

19.1

1.6/2.0/3.2

360

30

1.6/2.0/3.2

360

42

1.6/2.0/3.2

        Note: The products can be manufactured per customer's request as non-standard shapes such as rectangular, square, triangle, rhombus, sector and so on.   The Application of PCD Cutting Tool Blanks: PCD cutting tool blanks applicable to the processing of non-metal matal as wood, ceramics,intensified planks and ono-farrous material as copper and aluminum.     PCD Cutting Tool Blanks Application Recommendation:
Grades Characters  Applications Advantages
  W5 fine grain size

1. Average grain size: 5μm

2. High diamond content over90%

3. Laser cutting or wire EDM cutting

  Aluminum,Brass/Copper,Precious metals,Wood composites,Plastic   Excellent surface finish
  W10 medium grain size

1. Average grain size: 10μm

2. High diamond content over90%

3. Laser cutting or wire EDM cutting

  <14% Si/Al alloys,Copper alloys,Graphite and graphite composites,Green ceramics and carbides   Excellent resistance,good surface finish
 W25 coarse grain size

1. Average grain size: 25μm

2.High diamond concent over90%

3. Laser cutting or wire EDM cutting

  >14% Si/Al alloys,metal matrix composites,Bi-metals(aluminum/castiron),sintered ceramics and carbides   Long life,extremely high wear resistance

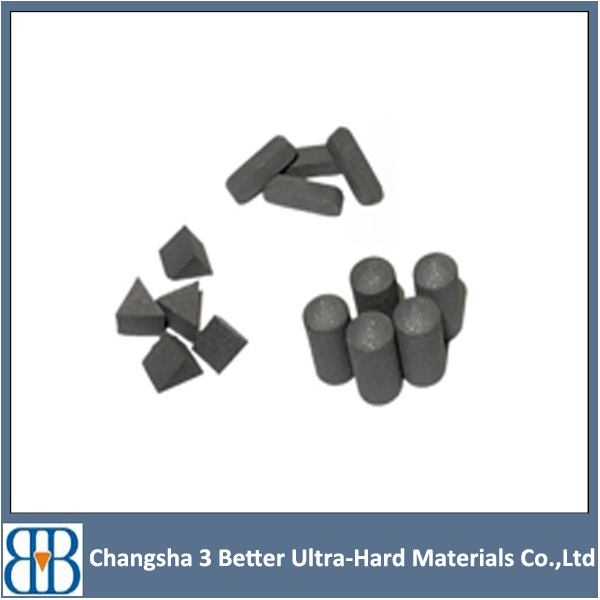

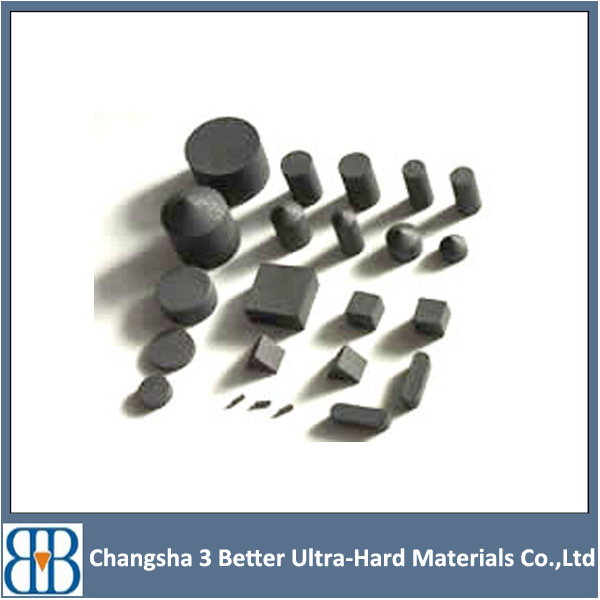

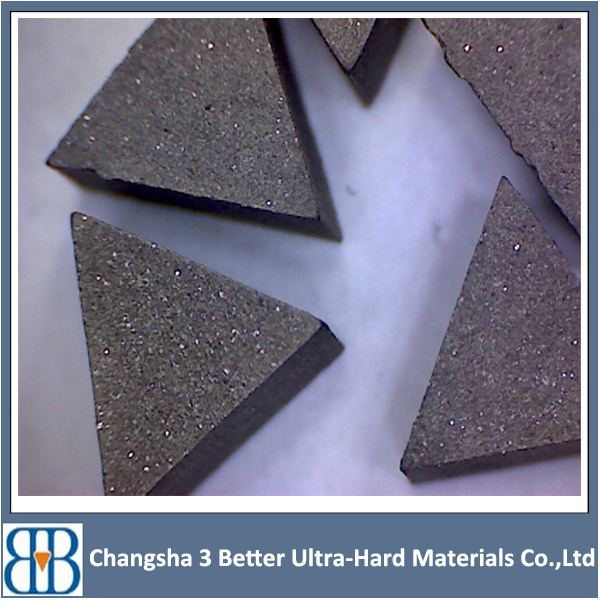

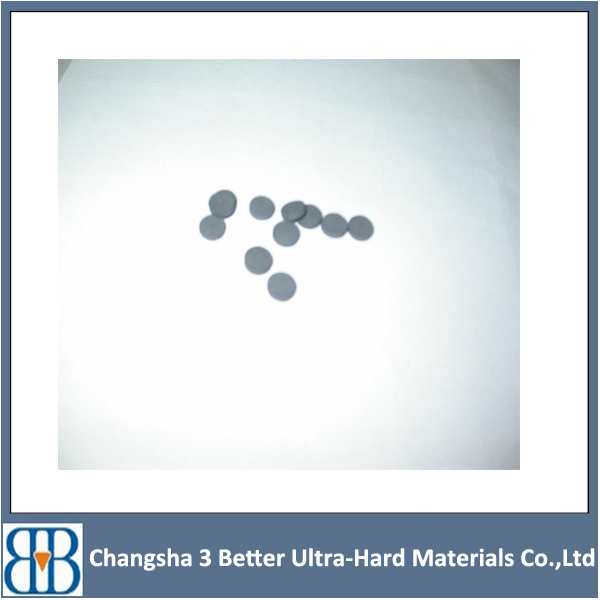

  Product photo show:         Brief Introduction of US   We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) Abrasives and tools. We based on excellent product quality, and endeavor to provide our clients with Three BETTER Concept: better products, better prices and better services. Our tenet is: no limit for best, only to make it better and better.

We are located in the middle-south of Changsha City, and have a factory to manufacture most of the diamond and CBN abrasives and tools. Besides, we have good cooperation with many qualified manufacturers, institutes, laboratories and researching centers, so we could supply almost all of the synthetic diamond and CBN tools or other new materials for clients utmost satisfaction.

We could supply Synthetic Diamond Grits, diamond micron, CBN Grits, CBN micron, TSP/PCD, PDC inserts, PCD, ND DIE and BLANDS, PCBN , CVD diamond. We could also provide tools: Diamond & CBN grinding wheels, diamond cutting blades with diamond segment, diamond & CBN grinding covers, Diamond Core Bits, diamond flexible polishing pads and other brazed & electroplated Diamond Tools. We could also make tungsten carbide materials.

Our products are well sold both in domestic market and overseas, including in Europe, America, South Asia and other countries and regions. With stable quality performance and most competitive prices, we get good reputations from our clients worldwide. We have been working hard for BETTER and BETTER products, prices and services.             Any questions about the product,pls send email to us directly.The email address is    Awaiting for your inquiry,we will response you at the first time!
