Synthetic rough girts diamond PCD wire drawing die hole 0.040-0.30mm

Product Description

Synthetic rough girts diamond PCD wire drawing die in hole 0.040-0.30mm Product Description   PCD DIE: PCD wire drawing die is polycrystalline diamond core completely integrated with a tungsten carbide ring. The supported carbide ring can increase the toughness of the blank and bear more strong impact during wire drawing.
Blank Size 2510 3215 5225 5235 7038 7053 1387 1399
Diamond Grits 3µ,5µ 3µ,5µ 3µ,5µ   3µ,5µ   5µ,10µ 10µ,15µ 10µ,20µ 10µ,20µ

 Hole Size

(mm)

0.201-0.30 0.301-0.40 0.301-0.40 0.501-0.60 0.601-0.70 0.701-0.80 0.801-0.90
0.901-1.00 1.001-1.10 1.101-1.20 1.201-1.30 1.301-1.50 1.501-1.70 1.701-2.00
2.001-2.30 2.301-2.60 2.601-2.90 2.901-3.30 3.301-3.80 3.801-5.30 5.301-8.00

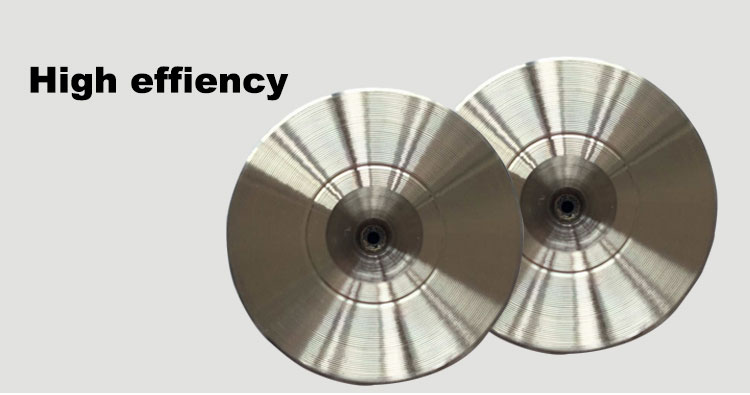

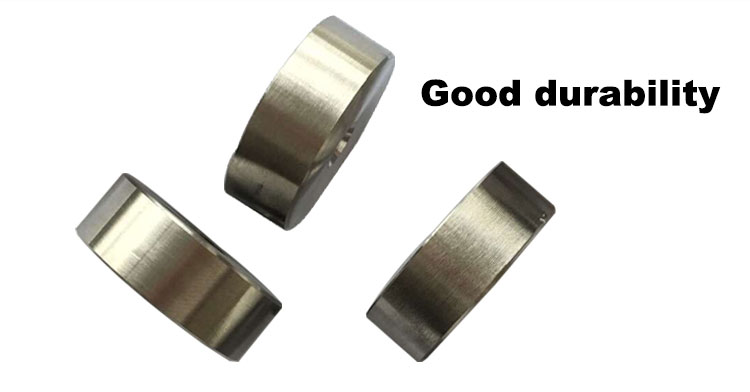

  Product Show     Product Process and Application   Packaging & Shipping      Company Information  We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) Abrasives and tools.We could supply Synthetic Diamond Grits, diamond micron, CBN Grits, CBN micron, TSP/PCD, PDC inserts, PCD, ND DIE and BLANDS, PCBN, CVD diamond. We could also provide tools: Diamond & CBN grinding wheels, diamond cutting blades with diamond segment, diamond & CBN grinding covers, Diamond Core Bits, diamond flexible polishing pads and other brazed & electroplated Diamond Tools. We could also make tungsten carbide materials.      Certificates     Related Products

Nature Diamond Die

Monocrystalline Diamond

Natural Diamond Copper

Wire Drawing Dies

  Contact Us  For more detals please contact us freely.   website: www.3bdiamond.com Send your inquiry details in the below,click "send" now !

Contact us if you need more details on diamond wire drawing die. We are ready to answer your questions on packaging, logistics, certification or any other aspects about PCD die、wire drawing die. If these products fail to match your need, please contact us and we would like to provide relevant information.
