High temperature recycle powder coating/Diamond powder coating wholesale Specification:
Product Name | cu(copper) coated diamond |
Brand | 3bdiamond |
Materials | Abrasives(coated synthetic diamond powder&cbn) |
Feature | In high temperature sintering and high temperature grindings,caoting for the diamond on isolation to protect,prevent the occurance of graphitization,oxidation or other chemical change,keep the own quale of the diamond,improve the effect of products. |
Functions | metal bond, resin bond, Vitrified Bond Diamond |
Sizes | 50/60,60/70,70/80.80/100.100/120,120/140,140/170, 170/200,200/230,230/270,270/325,325/400,400/500 |
Delivery | within one working week after the receipt of your payment |
Delivery | By DHL/TNT |
M.O.Q | 500,000 cts |
Packing | 10000 carats packed into one plastic bag. 10 to 14 pieces packed into one carton. |
Supply ability | 3000000 cts/month
|
cu(copper) Coated diamond Description: Coated diamond is divided into Electrolytic and chemical plating. It includes Ni coating, Cu coating, Ti coating. Coated diamond effectively increase holding force between diamod and bonding, reduce thermal shock, protect diamond against oxidation and graphite, lengthen product lifetime. Usuage: Electroplating Nickel products mainly used in resin bond products with dry and wet abrasives, effectively improve the holding force, with good thermal stable ability, avoid carbonization in high speed cutting. Ni coated diamond powder with 56N, 30N, 10N and the coating also can be made according to your requirements. Chemistry plating Nickel products mainly used in bond products with dry and wet abrasives, no external current condition, deposite metal on diamond surface by process of self-catalytic reactions ,form the thickness and denstity of nickel-plated. 1), cu(copper) coated diamond Introduction In high temperature sintering and high temperature grindings,coating for the diamond on isolation to protect,prevent the occurance of graphitization,oxidation or other chemical change,keep the own quale of the diamond,improve the effect of products. Applications Suitable for metal or vitrified bond products Picture

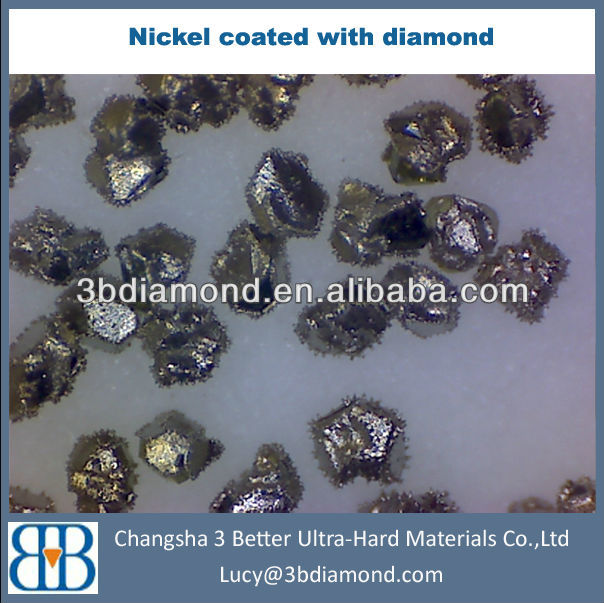

2),Nickel Coated With Diamond Introduction From grinding heat after caoting buffer funcation,ans then to the contact with agglutinant,which can be aganist burning -out as the high temperature impact from the moment,retard the speed of diamond grains off,maintain the holding force of the abrasive ,with execellent thermal conductivity. Application Appropriated for resin bond materials Picture

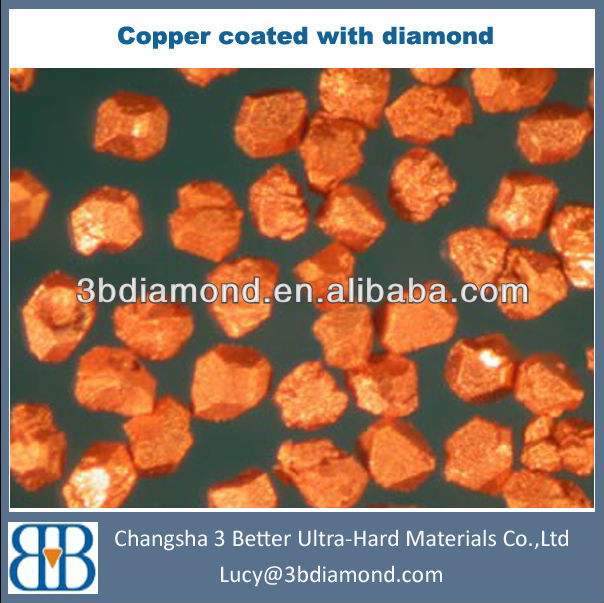

3),Cu(copper) Coated with diamond Introduction Strong corrosion resistance,high strength ,suitable for deep drilling thus easily into the underground,copper sheet will not burst and fall off by inreasing mechanical holdding force of the diamond and reduce heat damage,can effectively improve the tools use life. Application Apply to the bond products ,especially suitable for soil strong corrosion places Picture

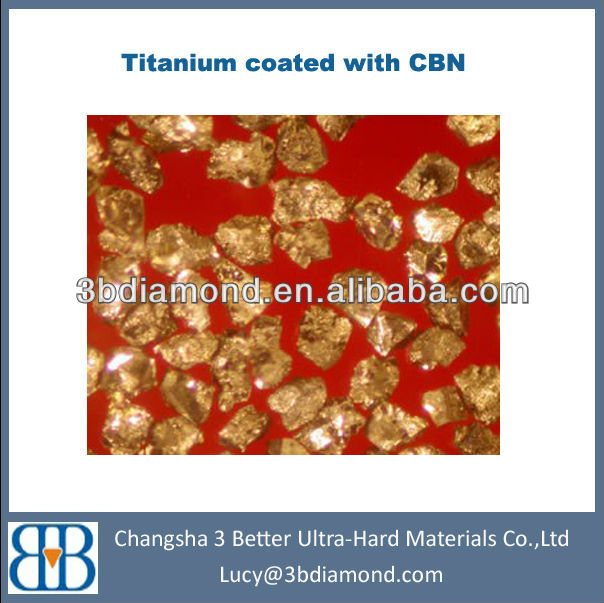

4),Titanium Coated with CBN Introduction High grinding efficiency ,high durable degree,easy to trim,ceramic bonf materials has the good chemical stability ,heat resistance,oil resistance and erosion of Acidproof Alkali,can adopt to all kinds of grinding liquid Application Suitable for vitrified and high temperature metal bond materials Picture

5),Nickel Coated with CBN Introduction Nickel layer can expedite bindingability between the CBN single Crystal and the lire body,extend the service life oftools,also can improve the holding force,protect the diamond from oxidation,and protect erosion ofdiamond graphitization Application CBN Nickel Plating is applicable for resin bond products Picture
Contact us if you need more details on Diamond powder coating. We are ready to answer your questions on packaging, logistics, certification or any other aspects about high temperature powder coating、recycle powder coating. If these products fail to match your need, please contact us and we would like to provide relevant information.
